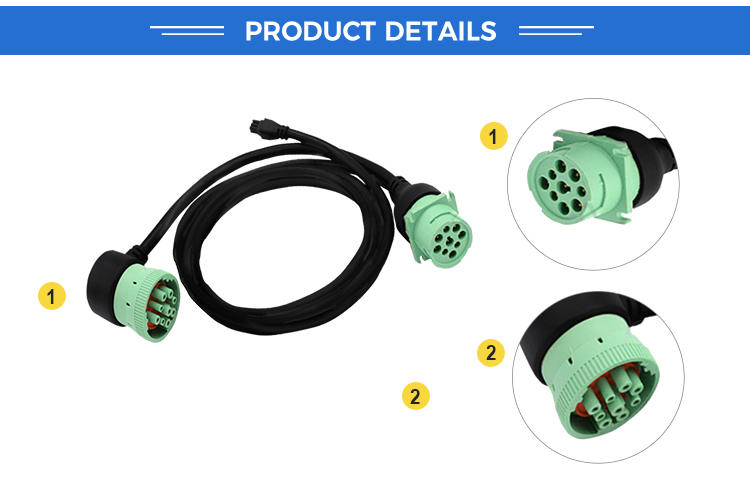

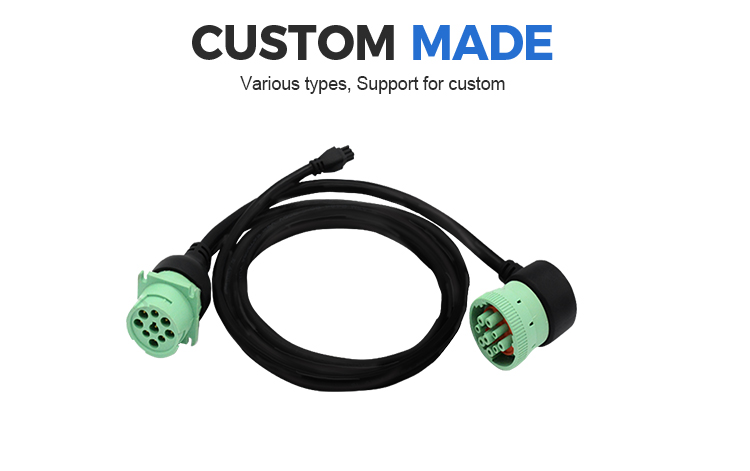

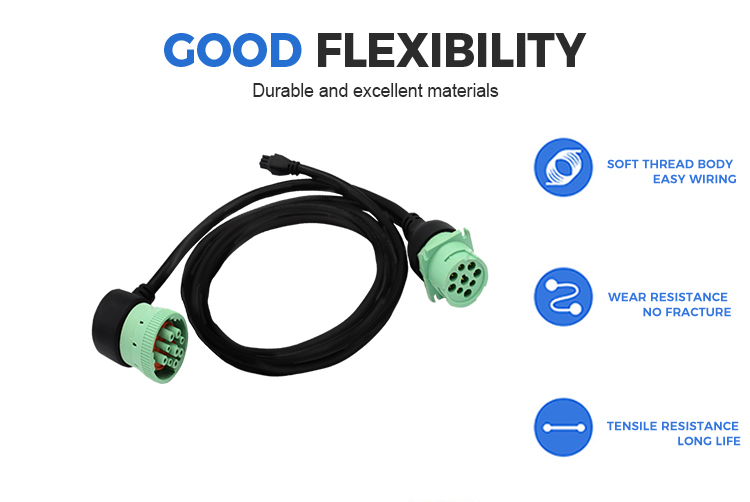

Green 9 pin J1939 male to 9pin J 1939 female can bus cable j1939 eld cable

Product description：Green 9 pin J1939 male to 9pin J 1939 female can bus cable j1939 eld cable
Inquiry

2021 Green 9 pin J1939 male to 9pin J 1939 female can bus cable j1939 eld cable

Products Description

Specification
J1939 male plug	standard,12V/24V
Pins of J1939 male plug	Copper,nickel-plated or gold-plated
Overmold ofJ1939male plug	straight
J1939 female connector	standard
Cable shape	Round
Wire	26AWG, pure copper
Material of overmolded part	PVC
Pin assignment or pin out	customized
Cable length	customized
Pins or terminals	copper, nickel-plated or gold-plated
Contact Resistance	3 ohm max.
Insulation Resistance	5M ohm min.
Working Temperature	−25℃ ~ +85℃
Testing	100% open, short and mis-wire testing
Testing Voltage	DC300V 5M ohm/10ms
Warranty	1 year
